Alüminyum Profil Çözümlerimiz
Modern ekstrüzyon hatlarımızda üretilen profil sistemlerimizi aşağıdan inceleyebilirsiniz. Tüm veriler teknik tablo formatında sunulmuştur.
Standart Profiller

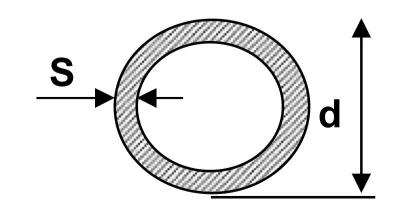

BORULAR
| PROFİL NO | d (mm) | s (mm) | GRAMAJ (kg/m) |
|---|---|---|---|
| 5000 | 7 | 1 | 0,055 |
| 5001 | 8 | 1 | 0,060 |
| 5002 | 9 | 1 | 0,070 |
| 5003 | 10 | 1 | 0,080 |
| 5004 | 12 | 1 | 0,100 |
| 5005 | 12 | 1,5 | 0,135 |
| 5006 | 13 | 1 | 0,105 |
| 5007 | 14 | 1 | 0,111 |
| 5008 | 14 | 2 | 0,205 |
| 5009 | 15 | 1 | 0,120 |
| 5010 | 16 | 1 | 0,127 |
| 5011 | 16 | 2 | 0,245 |
| 5012 | 16 | 5 | 0,470 |
| 5013 | 18 | 5 | 0,555 |
| 5014 | 19 | 1 | 0,160 |
| 5015 | 20 | 1 | 0,165 |
| 5016 | 20 | 1,5 | 0,235 |
| 5017 | 20,5 | 2,5 | 0,400 |
| 5018 | 21 | 1 | 0,170 |
| 5019 | 22 | 1 | 0,180 |
| 5020 | 22 | 2,5 | 0,420 |
| 5021 | 22 | 7 | 0,894 |
| 5022 | 24 | 2,5 | 0,470 |
| 5023 | 24 | 8,75 | 1,140 |
| 5024 | 25 | 1 | 0,210 |
| 5025 | 25 | 1.25 | 0,250 |
| 5026 | 25 | 1,5 | 0,310 |
| 5027 | 25 | 2 | 0,400 |
| 5028 | 25 | 2,5 | 0,490 |
| 5029 | 26 | 1,5 | 0,312 |
| 5030 | 28 | 1 | 0,230 |
| 5031 | 30 | 1 | 0,225 |
| 5032 | 30 | 2 | 0,480 |
| 5033 | 30 | 2,5 | 0,585 |
| PROFİL NO | d (mm) | s (mm) | GRAMAJ (kg/m) |
|---|---|---|---|
| 5034 | 33 | 4 | 1,000 |
| 5035 | 34 | 2.5 | 0,670 |
| 5036 | 35 | 5 | 1,330 |
| 5037 | 35 | - | 0,230 |
| 5038 | 39 | 12 | 2,758 |
| 5039 | 40 | 1,5 | 0,505 |
| 5040 | 40 | 2,5 | 0,820 |
| 5041 | 40 | 5 | 1,500 |
| 5042 | 40 | 3 | 0,950 |
| 5043 | 45 | 2.5 | 0,900 |
| 5044 | 50 | 1,5 | 0,615 |
| 5045 | 50 | 2.5 | 1,000 |
| 5046 | 50 | 3 | 1,195 |
| 5047 | 50 | 5 | 1,920 |
| 5048 | 55 | 2,5 | 1,120 |
| 5049 | 60 | 2,5 | 1,224 |
| 5050 | 60 | 5 | 2.340 |
| 5051 | 60 | 20 | 6.815 |
| 5052 | 70 | 2 | 1,185 |
| 5053 | 72,5 | 3,1 | 1,920 |
| 5054 | 75 | 2,5 | 1.543 |
| 5055 | 75 | 5 | 2,980 |
| 5056 | 80 | 2 | 1,320 |
| 5057 | 80 | 22,5 | 11,000 |
| 5058 | 90 | 2 | 1,500 |
| 5059 | 90 | 11,13 | 7,500 |
| 5060 | 95 | 7,5 | 4,100 |
| 5061 | 100 | 2,5 | 2,075 |
| 5062 | 100 | 3 | 2,500 |
| 5063 | 100 | 5 | 4,040 |
| 5064 | 107 | 1,4 | 1,260 |
| 5065 | 120 | 5 | 4,900 |
| 5066 | 125 | 2 | 2,095 |

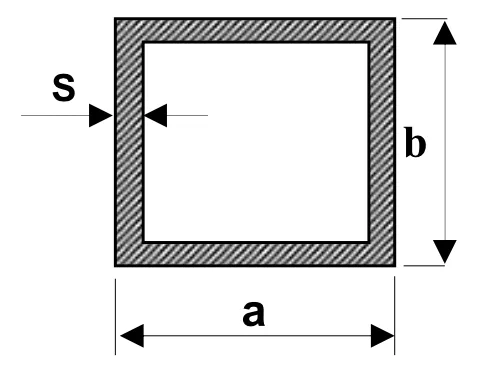

KUTU PROFİLLER
| PROFİL NO | a (mm) | b (mm) | s (mm) | GRAMAJ (kg/m) |
|---|---|---|---|---|
| 5100 | 10 | 20 | 1 | 0,160 |
| 5101 | 17 | 25 | 1,25 | 0,265 |
| 5102 | 20 | 10 | 1,7 | 0,250 |
| 5103 | 20 | 30 | 1.2 | 0,310 |
| 5104 | 20 | 30 | 2 | 0,500 |
| 5105 | 20 | 40 | 1,1 | 0.345 |
| 5106 | 20 | 40 | 2 | 0,610 |
| 5107 | 20 | 60 | 1,2 | 0,490 |
| 5108 | 25 | 25 | 2 | 0,500 |
| 5109 | 25 | 40 | 1,6 | 0,535 |
| 5110 | 25 | 40 | 2,5 | 0,820 |
| 5111 | 26 | 45 | 2 | 0,730 |
| 5112 | 30 | 20 | 1,8 | 0,455 |
| 5113 | 30 | 30 | 1,5 | 0,470 |
| 5114 | 30 | 40 | 1,1 | 0,402 |
| 5115 | 30 | 50 | 1,5 | 0,630 |
| 5116 | 30 | 73 | 1,2 | 0,650 |
| 5117 | 40 | 40 | 1 | 0,425 |
| 5118 | 40 | 40 | 2 | 0,820 |
| 5119 | 40 | 50 | 1 | 0,475 |
| 5120 | 40 | 50 | 1,5 | 0,700 |
| 5121 | 40 | 50 | 2 | 0,930 |
| 5122 | 40 | 60 | 1,5 | 0,785 |
| 5123 | 40 | 60 | 2 | 1,050 |
| PROFİL NO | a (mm) | b (mm) | s (mm) | GRAMAJ (kg/m) |
|---|---|---|---|---|
| 5124 | 40 | 80 | 1,6 | 1,000 |
| 5125 | 40 | 80 | 3 | 1,850 |
| 5126 | 41 | 44 | 2 | 0,870 |
| 5127 | 43 | 113 | 2 | 1,650 |
| 5128 | 44 | 66 | 2 | 1,140 |
| 5129 | 44 | 91 | 2 | 1.425 |
| 5130 | 44 | 108 | 2,5 | 1,510 |
| 5131 | 46 | 71 | 2 | 1,220 |
| 5132 | 50 | 50 | 2 | 1,040 |
| 5133 | 50 | 50 | 4 | 1,990 |
| 5134 | 50 | 90 | 1,8 | 1,325 |
| 5135 | 50 | 95 | 1,6 | 1,225 |
| 5136 | 50 | 95 | 2,3 | 1,770 |
| 5137 | 50 | 100 | 2 | 1,585 |
| 5138 | 60 | 60 | 2 | 1,255 |
| 5139 | 60 | 60 | 2,9 | 1,800 |
| 5140 | 60 | 80 | 2 | 1,475 |
| 5141 | 100 | 100 | 2 | 2.125 |
| 5142 | 100 | 100 | 3 | 3,160 |
| 5143 | 150 | 50 | 2 | 2,130 |

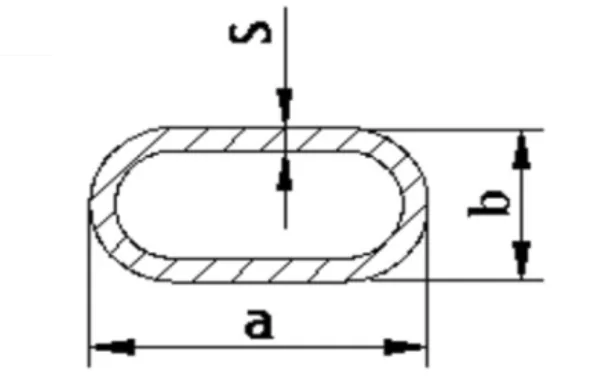

YASSI PROFİLLER
| PROFİL NO | a (mm) | b (mm) | s (mm) | GRAMAJ (kg/m) |
|---|---|---|---|---|
| 5200 | 25 | 10 | 1,1 | 0,180 |

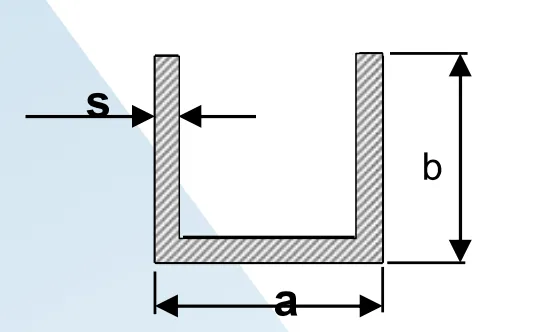

U PROFİLLER
| PROFİL NO | a (mm) | b (mm) | S (mm) | GRAMAJ (kg/m) |
|---|---|---|---|---|
| 5300 | 17 | 17 | 0,9 | 0,120 |
| 5301 | 10 | 10 | 1 | 0,075 |
| 5302 | 18 | 20 | 1 | 0,155 |
| 5303 | 20 | 20 | 1 | 0,165 |
| 5304 | 27 | 18 | 1,5 | 0,250 |
| 5305 | 21 | 25 | 1,1 | 0,215 |
| 5306 | 30 | 20 | 0,9 | 0,165 |
| 5307 | 42.4 | 30 | 1,2 | 0,325 |
| 5308 | 45 | 16 | 0,9 | 0,215 |
| 5309 | 49,5 | 49,5 | 2 | 0,783 |
| 5310 | 95 | 20 | 1,5 | 0,540 |
| 5311 | 14 | 10 | 1,5 | 0,130 |

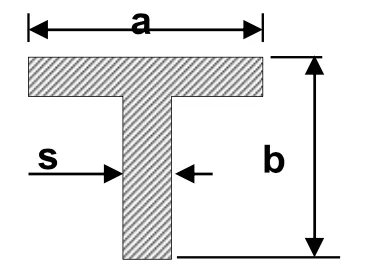

T PROFİLLER
| PROFİL NO | a (mm) | b (mm) | s (mm) | GRAMAJ (kg/m) |
|---|---|---|---|---|
| 5400 | 20 | 20 | 1,2 | 0,130 |
| 5401 | 20 | 20 | 1,5 | 0,160 |
| 5402 | 25 | 25 | 1,2 | 0,165 |
| 5403 | 30 | 30 | 1,2 | 0,195 |
| 5404 | 30 | 30 | 2 | 0,325 |
| 5405 | 40 | 40 | 2 | 0,435 |
| 5406 | 42 | 20 | 2 | 0,325 |
| 5407 | 60 | 30 | 8 | 1,180 |
| 5408 | 80 | 80 | 7 | 2,930 |

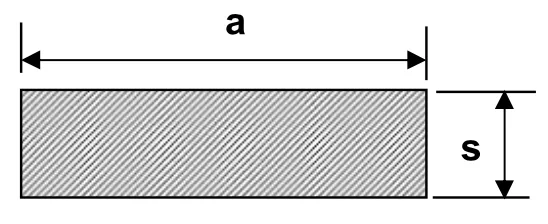

LAMALAR
| PROFİL NO | a (mm) | S (mm) | GRAMAJ (kg/m) |
|---|---|---|---|
| 5500 | 10 | 6 | 0,165 |
| 5501 | 15 | 5 | 0,205 |
| 5502 | 18 | 2 | 0,100 |
| 5503 | 18,5 | 4 | 0,200 |
| 5504 | 20 | 3 | 0,165 |
| 5505 | 20 | 5 | 0,280 |
| 5506 | 20 | 10 | 0,542 |
| 5507 | 25 | 3 | 0,205 |
| 5508 | 25 | 5 | 0,350 |
| 5509 | 25 | 6 | 0,410 |
| 5510 | 30 | 3 | 0,250 |
| 5511 | 30 | 5 | 0,490 |
| 5512 | 30 | 10 | 0,820 |
| 5513 | 30 | 15 | 1,220 |
| 5514 | 30 | 20 | 1,630 |
| 5515 | 40 | 5 | 0,545 |
| 5516 | 40 | 10 | 1,110 |
| 5517 | 40 | 20 | 2,170 |
| 5518 | 45 | 15 | 1,830 |
| 5519 | 50 | 3 | 0,415 |
| 5520 | 50 | 5 | 0,695 |
| 5521 | 50 | 10 | 1,355 |
| 5522 | 50 | 20 | 2,710 |
| 5523 | 50 | 40 | 5,420 |
| 5524 | 60 | 4 | 0,650 |
| 5525 | 60 | 5 | 0,820 |
| 5526 | 60 | 10 | 1,630 |
| PROFİL NO | a (mm) | S (mm) | GRAMAJ (kg/m) |
|---|---|---|---|
| 5527 | 60 | 20 | 3,250 |
| 5528 | 60 | 25 | 4,100 |
| 5529 | 60 | 30 | 4,880 |
| 5530 | 60 | 40 | 6,500 |
| 5531 | 80 | 5 | 1,100 |
| 5532 | 80 | 10 | 2,170 |
| 5533 | 80 | 15 | 3,550 |
| 5534 | 80 | 20 | 4,320 |
| 5535 | 80 | 30 | 6,480 |
| 5536 | 80 | 40 | 8,640 |
| 5537 | 100 | 7 | 1,900 |
| 5538 | 100 | 10 | 2,710 |
| 5539 | 100 | 15 | 4,100 |
| 5540 | 100 | 20 | 5,400 |
| 5541 | 100 | 30 | 8,100 |
| 5542 | 110 | 30 | 8,950 |
| 5543 | 120 | 10 | 3,252 |
| 5544 | 120 | 15 | 4,878 |
| 5545 | 120 | 20 | 6,504 |
| 5546 | 120 | 30 | 9,756 |
| 5547 | 125 | 5 | 1,620 |
| 5548 | 130 | 7 | 2,470 |
| 5549 | 150 | 10 | 4,065 |
| 5550 | 150 | 15 | 6,098 |
| 5551 | 150 | 20 | 8,130 |
| 5552 | 150 | 30 | 12,195 |
| 5553 | 155 | 15 | 6,300 |

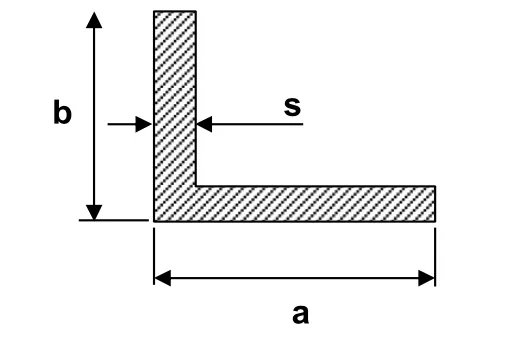

KÖŞEBENTLER
| PROFİL NO | a (mm) | b (mm) | S (mm) | GRAMAJ (kg/m) |
|---|---|---|---|---|
| 5600 | 10 | 30 | 1,0 | 0,110 |
| 5601 | 15 | 15 | 1,0 | 0,080 |
| 5602 | 20 | 10 | 1,0 | 0,080 |
| 5603 | 20 | 10 | 2,5 | 0,190 |
| 5604 | 20 | 20 | 1,2 | 0,100 |
| 5605 | 20 | 20 | 0,9 | 0,095 |
| 5606 | 20 | 40 | 1,2 | 0,200 |
| 5607 | 20 | 20 | 2,0 | 0,210 |
| 5608 | 20 | 15 | 2,0 | 0,180 |
| 5609 | 25 | 10 | 1,3 | 0,120 |
| 5610 | 25 | 25 | 1,0 | 0,135 |
| 5611 | 25 | 25 | 1,2 | 0,160 |
| 5612 | 25 | 25 | 2,0 | 0,260 |
| 5613 | 25 | 30 | 1,5 | 0,217 |
| 5614 | 30 | 10 | 1,5 | 0,160 |
| 5615 | 30 | 30 | 1,0 | 0,165 |
| 5616 | 30 | 30 | 1,3 | 0,210 |
| 5617 | 30 | 30 | 1,5 | 0,270 |
| 5618 | 40 | 20 | 2,0 | 0,325 |
| 5619 | 40 | 40 | 2,0 | 0,430 |
| 5620 | 40 | 40 | 3,0 | 0,650 |
| 5621 | 40 | 40 | 4,0 | 0,850 |
| 5622 | 50 | 50 | 2,5 | 0,675 |
| 5623 | 60 | 20 | 1,5 | 0,315 |
| 5624 | 100.5 | 100.5 | 10,0 | 5,180 |
| 5625 | 20 | 80 | 1,2 | 0,321 |
| 5626 | 40 | 40 | 1,5 | 0,319 |

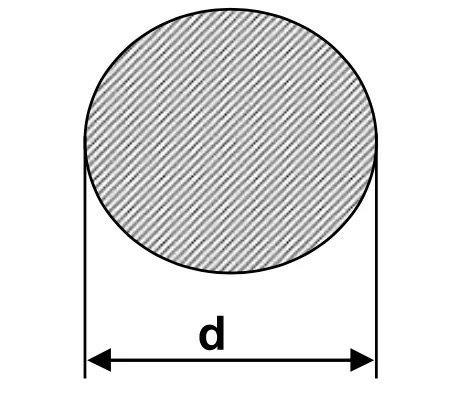

YUVARLAK (DOLU)
| PROFİL NO | d (mm) | GRAMAJ (kg/m) |
|---|---|---|
| 5700 | 5 | 0,055 |
| 5701 | 5,5 | 0,064 |
| 5702 | 6 | 0,077 |
| 5703 | 6,5 | 0,090 |
| 5704 | 7 | 0,105 |
| 5705 | 7,5 | 0,120 |
| 5706 | 8 | 0,136 |
| 5707 | 8,5 | 0,154 |
| 5708 | 9 | 0,172 |
| 5709 | 10 | 0,213 |
| 5710 | 11 | 0,258 |
| 5711 | 12 | 0,306 |
| 5712 | 13 | 0,360 |
| 5713 | 14 | 0,417 |
| 5714 | 15 | 0,480 |
| 5715 | 16 | 0,545 |
| 5716 | 18 | 0,690 |
| 5717 | 19 | 0,768 |
| 5718 | 20 | 0,851 |
| 5719 | 21 | 0,939 |
| 5720 | 22 | 1,030 |
| 5721 | 24 | 1,226 |
| 5722 | 25 | 1,330 |
| PROFİL NO | d (mm) | GRAMAJ (kg/m) |
|---|---|---|
| 5723 | 26 | 1,439 |
| 5724 | 28 | 1,669 |
| 5725 | 30 | 1,916 |
| 5726 | 32 | 2,178 |
| 5727 | 35 | 2,607 |
| 5728 | 36 | 2,758 |
| 5729 | 40 | 3,405 |
| 5730 | 45 | 4,310 |
| 5731 | 48 | 4,905 |
| 5732 | 50 | 5,321 |
| 5733 | 55 | 6,438 |
| 5734 | 60 | 7,662 |
| 5735 | 65 | 8,993 |
| 5736 | 70 | 10,429 |
| 5737 | 75 | 11,972 |
| 5738 | 80 | 13,622 |
| 5739 | 90 | 17,240 |
| 5740 | 100 | 21,284 |
| 5741 | 110 | 25,754 |
| 5742 | 120 | 30,649 |
| 5743 | 130 | 35,970 |
| 5744 | 140 | 41,717 |
| 5745 | 150 | 47,890 |

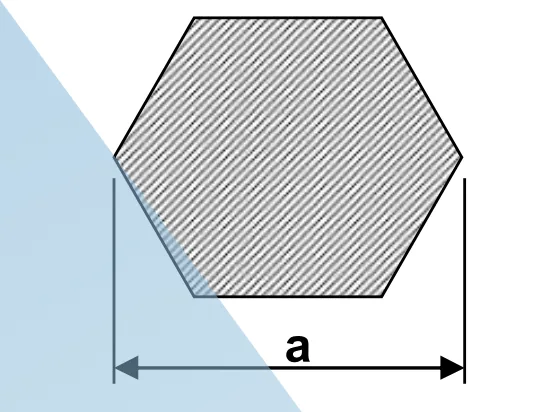

ALTIKÖŞE (DOLU)
| PROFİL NO | a (mm) | GRAMAJ (kg/m) |
|---|---|---|
| 5800 | 14 | 0,460 |
| 5801 | 17 | 0,680 |
| 5802 | 22 | 1,136 |
| 5803 | 26 | 1,587 |
| 5804 | 27 | 1,711 |
| 5805 | 30 | 2,115 |
| 5806 | 36 | 3,042 |

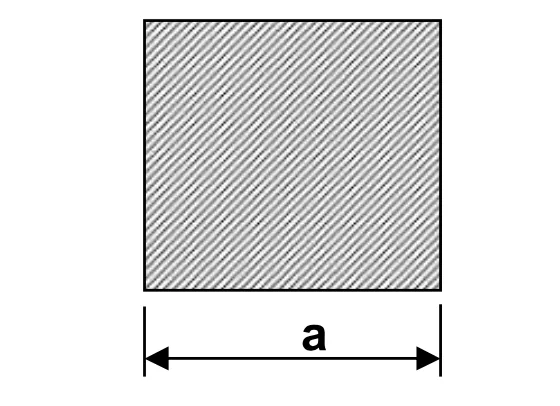

KARE (DOLU)
| PROFİL NO | a (mm) | GRAMAJ (kg/m) |
|---|---|---|
| 5900 | 10 | 0,271 |
| 5901 | 15 | 0,610 |
| 5902 | 18 | 0,878 |
| 5903 | 20 | 1,084 |
| 5904 | 25 | 1,694 |
| 5905 | 30 | 2,439 |
| 5906 | 40 | 4,336 |
| 5907 | 50 | 6,775 |
| 5908 | 60 | 9,756 |
| 5909 | 80 | 17,344 |
| 5910 | 90 | 21,951 |
| 5911 | 100 | 27,100 |
| 5912 | 120 | 39,025 |
| 5913 | 45 | 5,500 |
